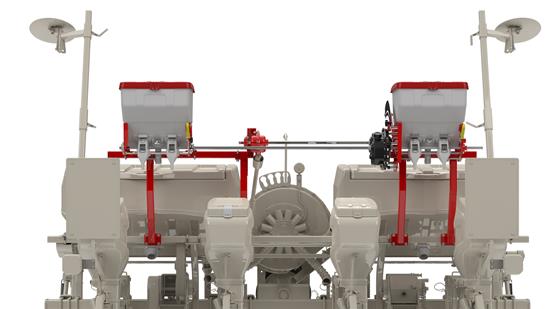

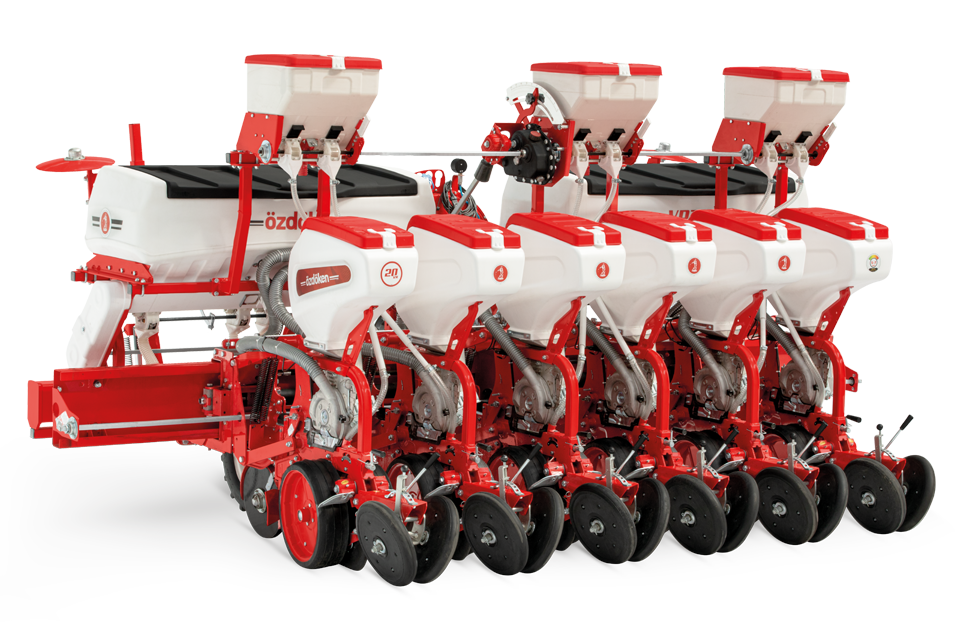

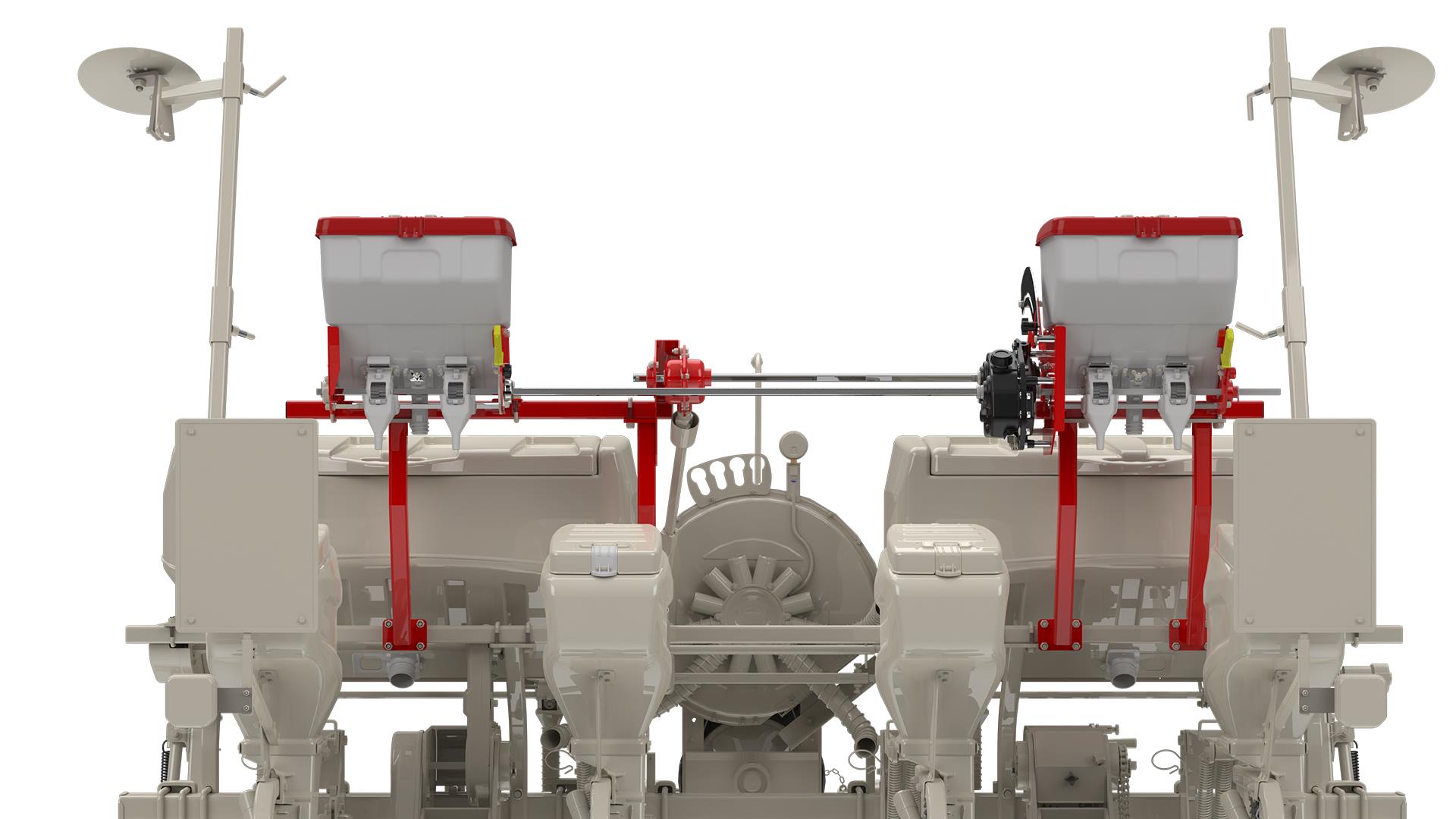

VPTT-D series precision planter is produced as disc type. Possible to change row space 45,50,55,60,65,70 cm with the help of adjustable telescopic frame. Fertilizer system and microgranule system are available as an option. 4,5,6 rows are avaliable for production.

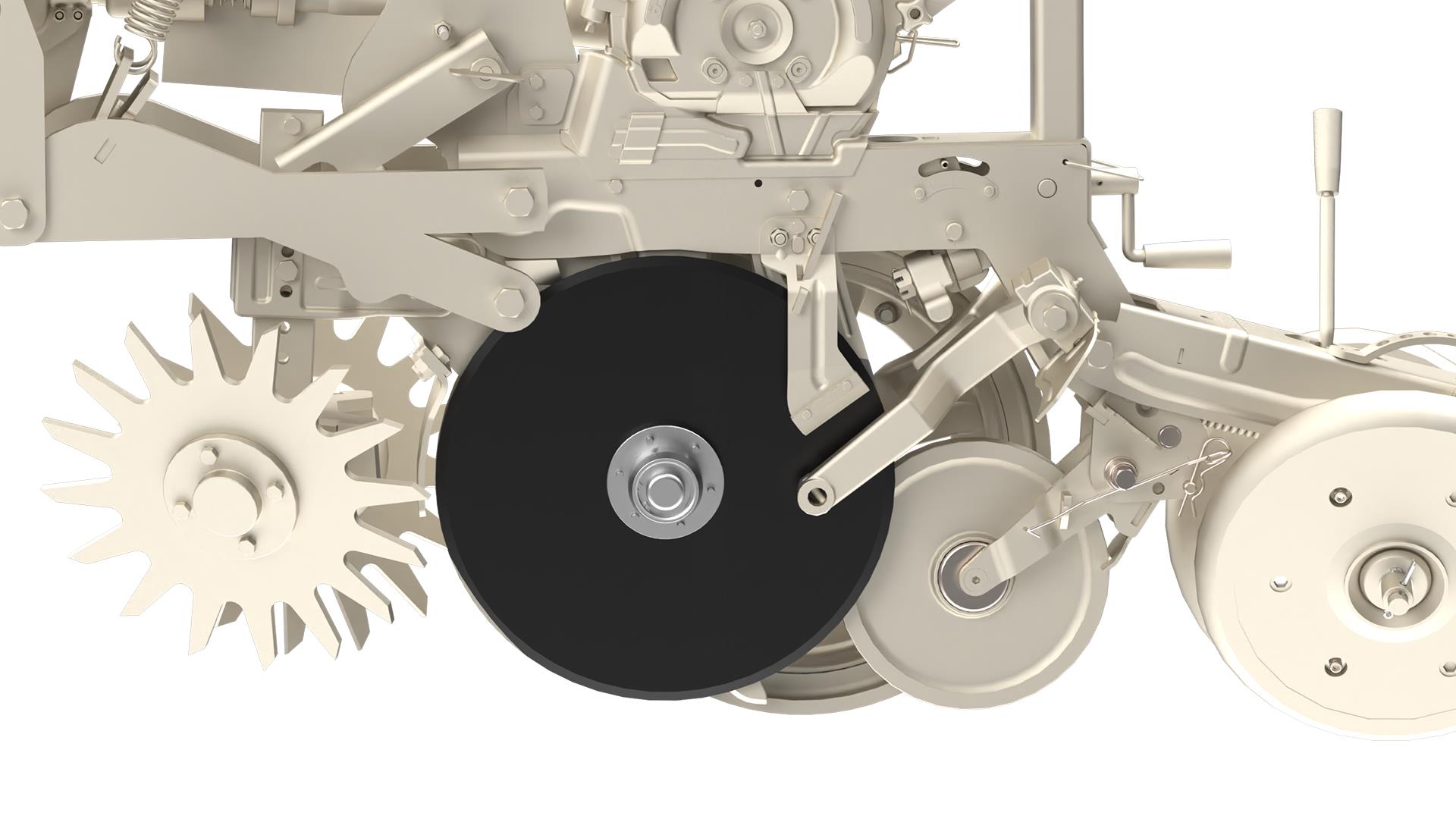

DOUBLE DISC TYPE ROW UNITS

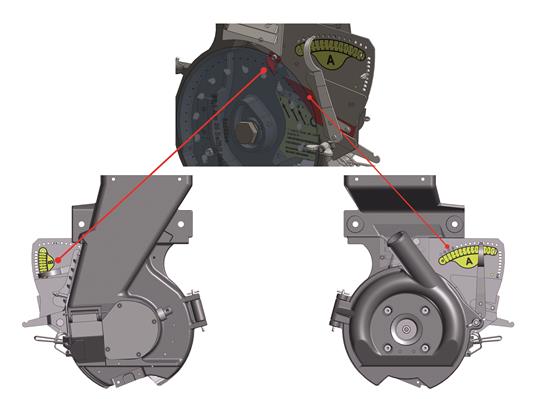

EASY DOUBLE SINGULATORS For perfect singulation for all kind of seeds on all row units ,selectors can be adjusted from the outside of the distributor by a metering scale.
MOVEMENT WHEELS - 23.5/10.50-12 TYRE SIZE

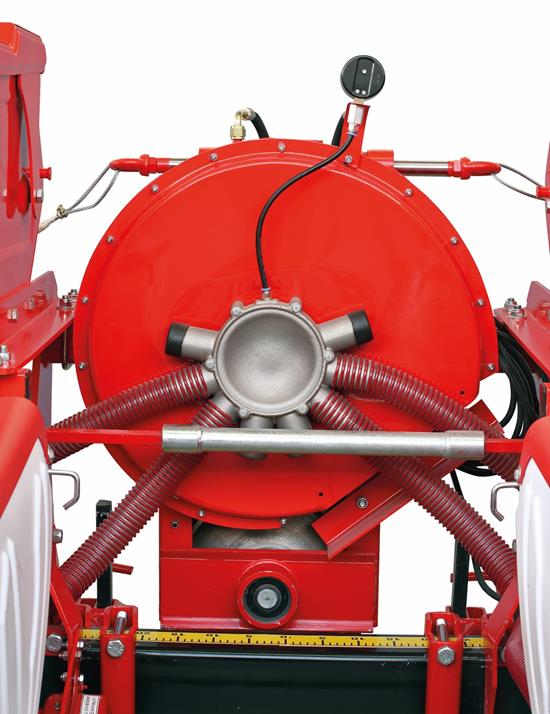

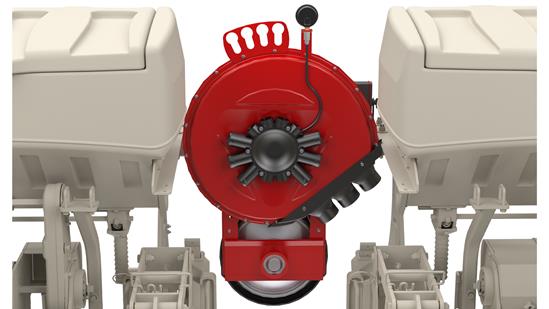

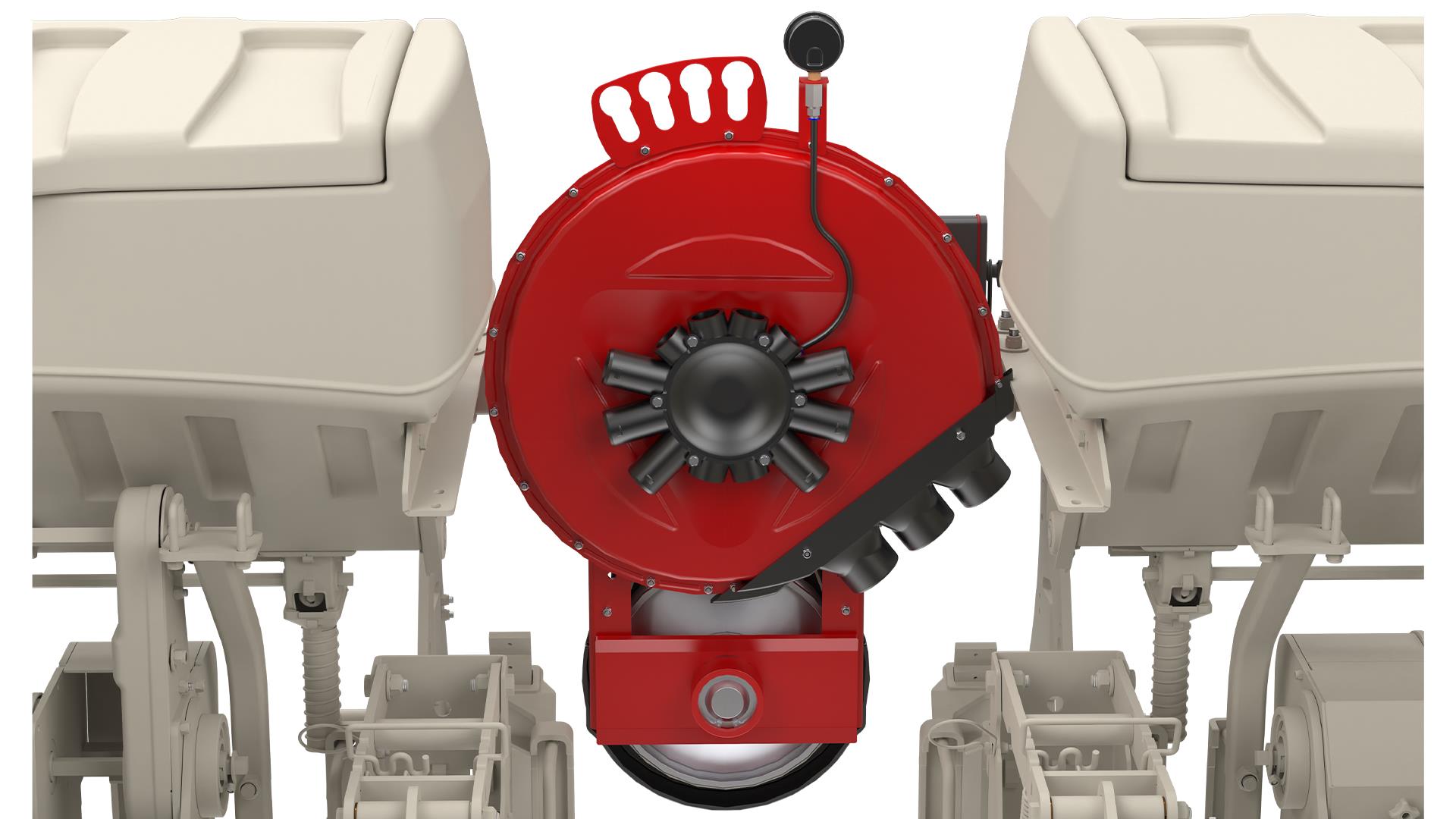

FAN SYSTEM Vacuum system has to be reliable while on working.Our fan system drive PTO shaft on 540 rpm and it is reliable even on high work hours and it’s quiet for user comfort.

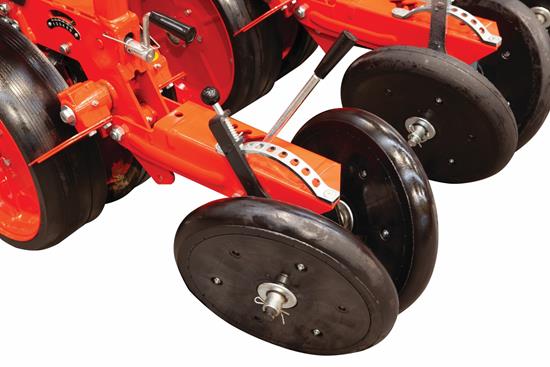

DOUBLE REAR PRESS WHEEL The closing wheels that close seed lines and it’s easy to adjust pressure on the soil.

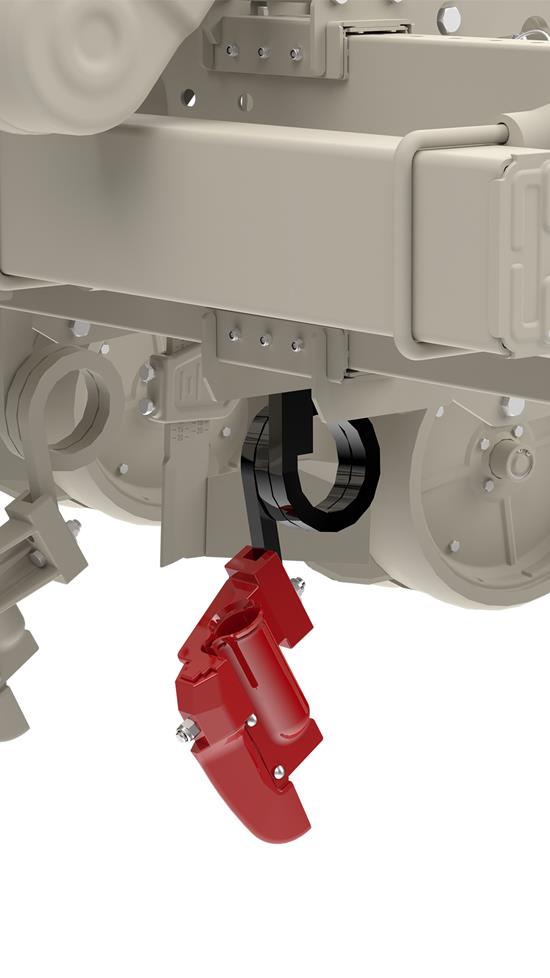

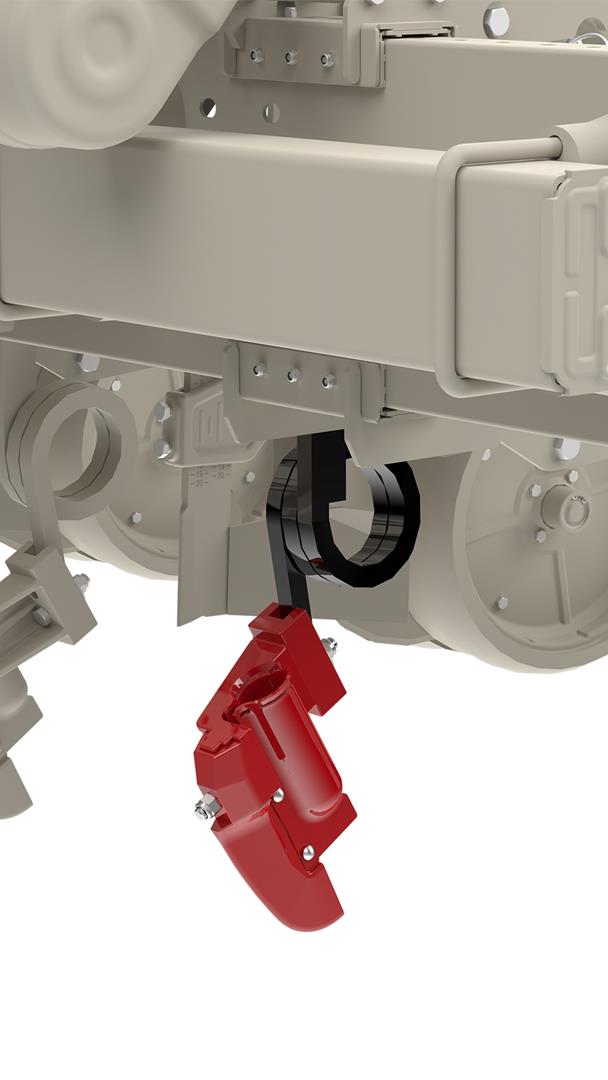

COULTER TYPE FERTILIZER OPENER
STANDART AREA COUNTER Area counter is standart in all models.

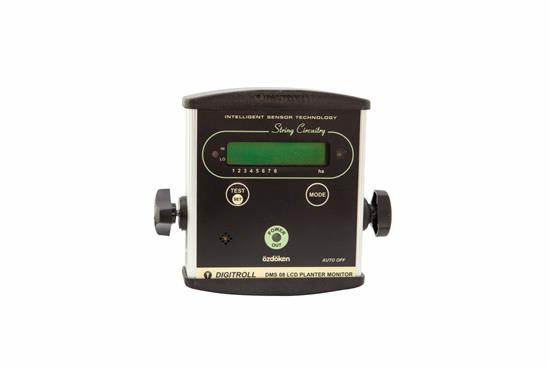

OPTIONAL DIGITROLL DMS-08 SEED CONTROLLER • Photosensored seed monitoring up to 8 rows • Total and partial hectare count • Automatic system diagnostic • Audible and visual blockage alarm • 6 selectable thresholds for missing seed alarms • Seed size selection for refined seed detection
METAL SEED PRESS WHEEL The press wheel stops the seed at the seeds come to into good contact with the soil.

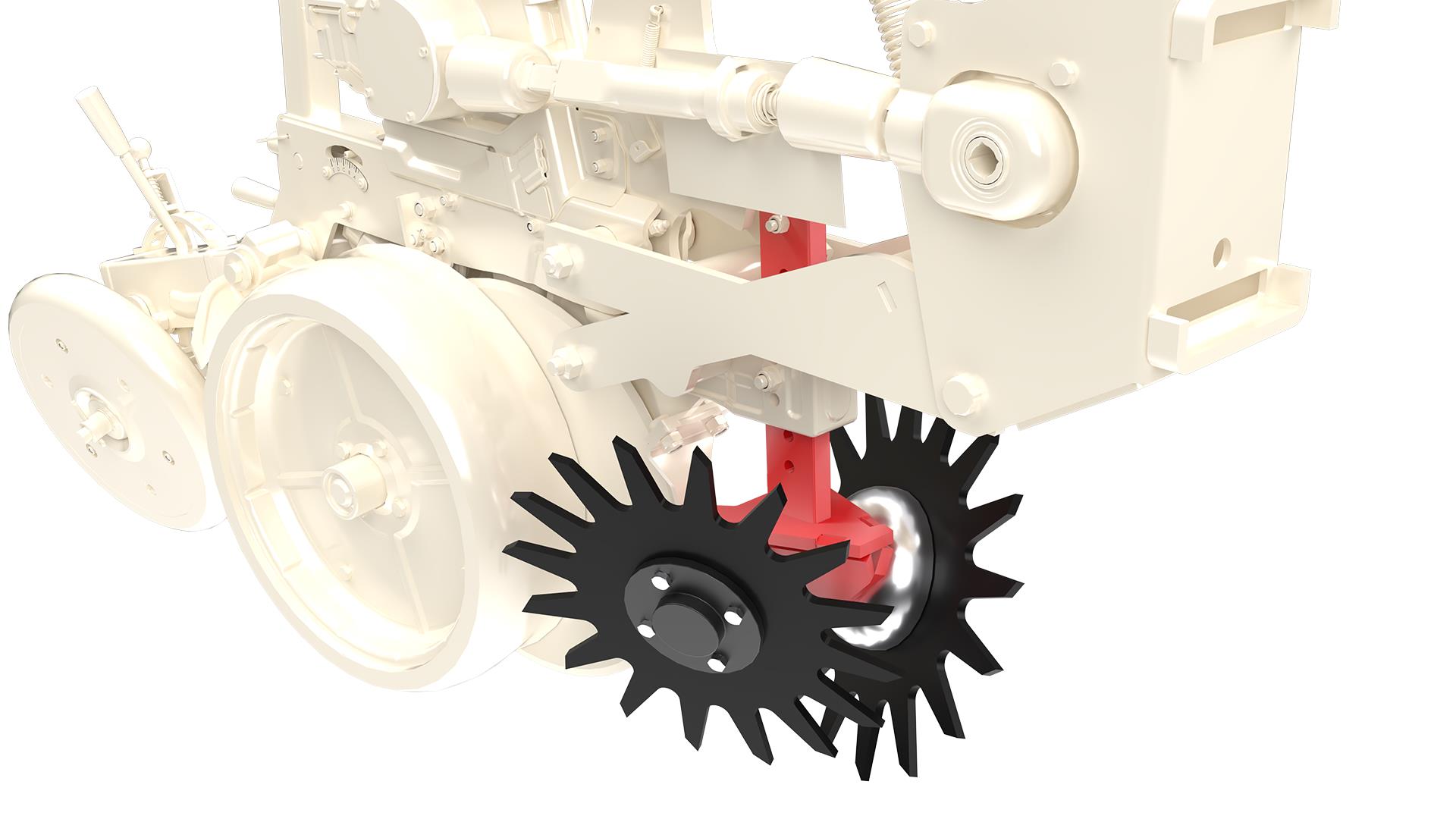

TRASH WHEEL Trash wheels can be mounted instead of clod remover.

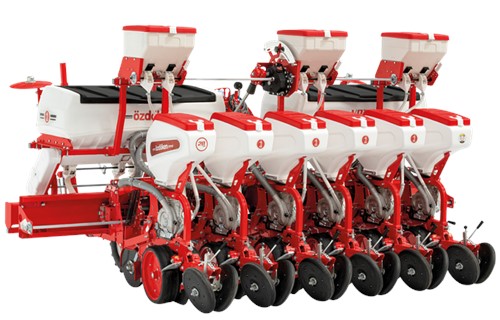

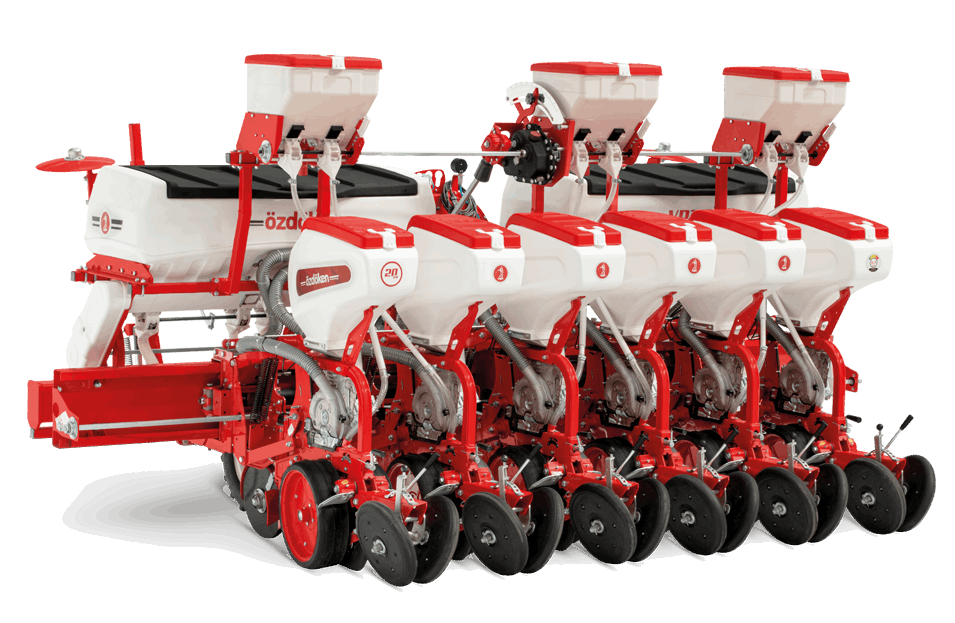

ADJUSTABLE TELESCOPIC FRAME
SEED HOPPER 40 Lt High Resistance Polythen Hopper

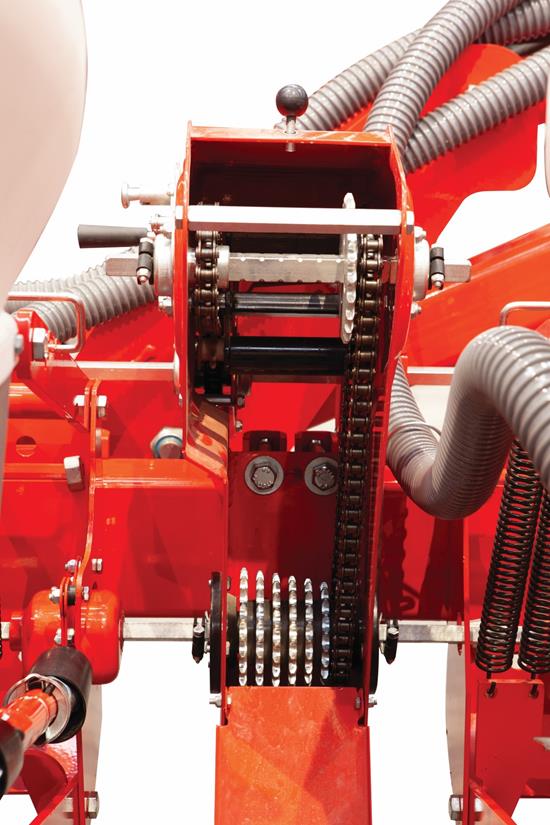

GEARBOX It’s easy to configurate seed spacing with mechanical gearbox.For precise seeding,gearbox is connected to row units with the best and security way.
CARDAN SHAFT DRIVE Cardan shaft is reliable and precise movement system and it’s maintenance free.

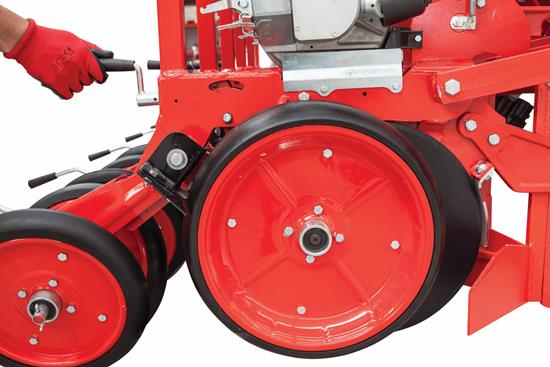

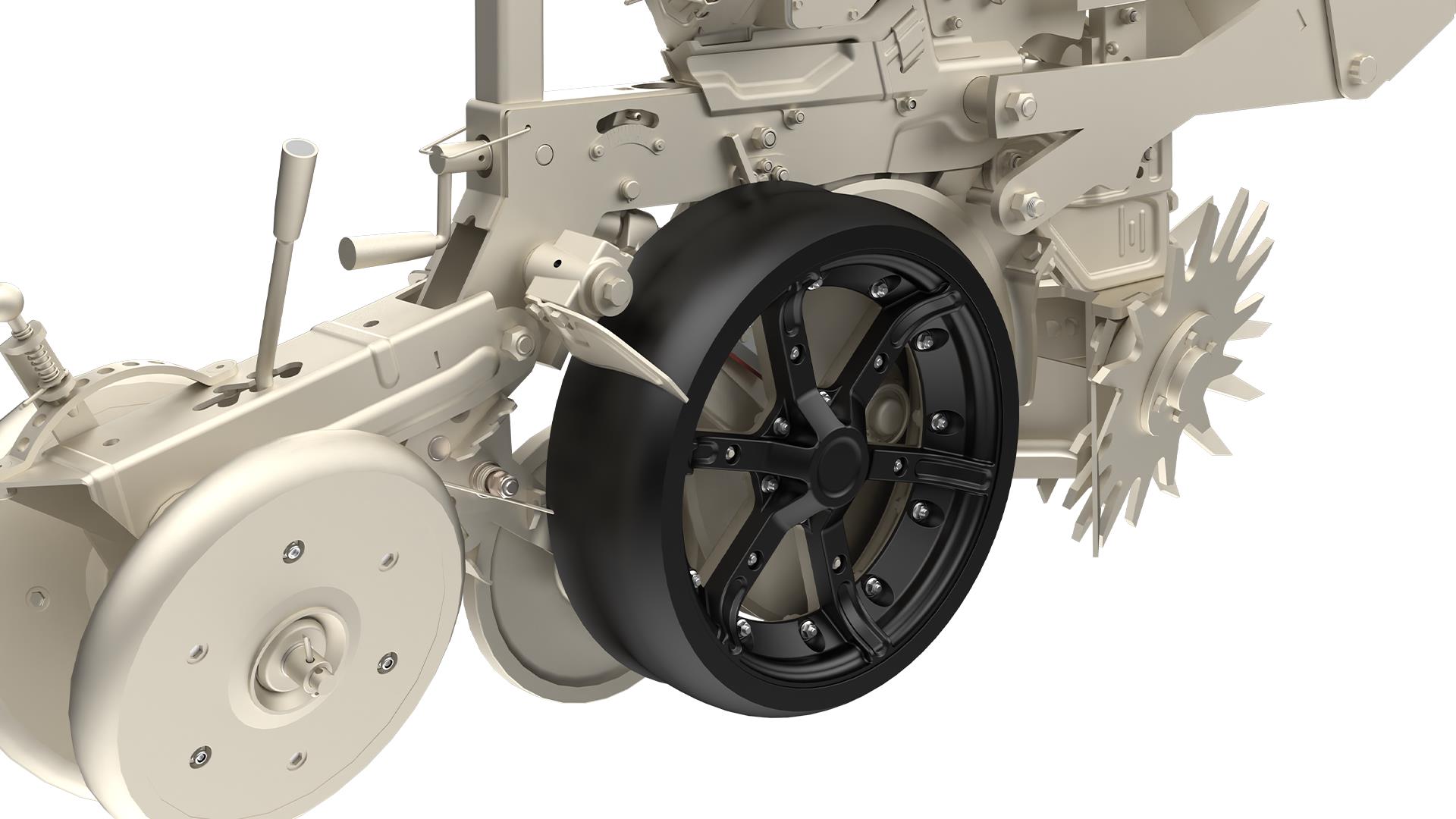

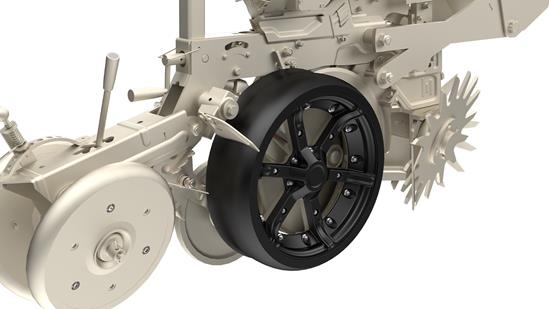

DEPTH ADJUSTMENT Depth adjustment from 1 to 10 cm due to rubber gauge wheels allows to seed precisely on uneven field conditions.

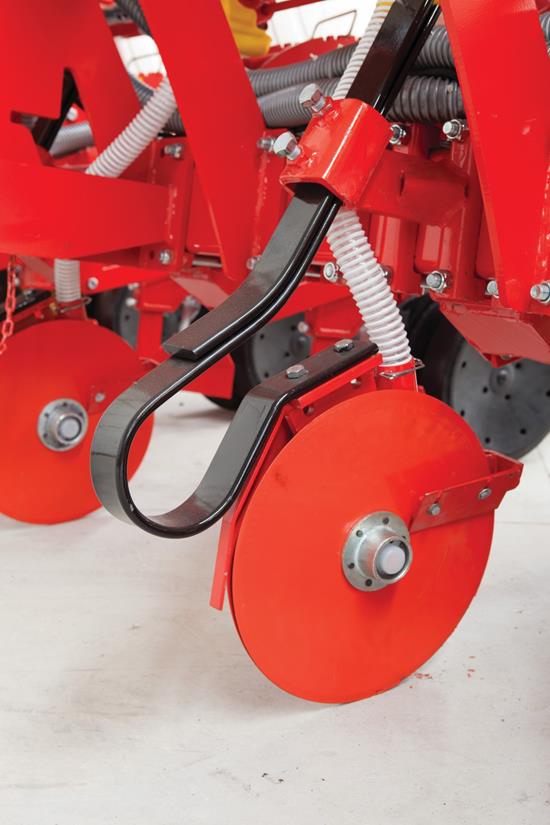

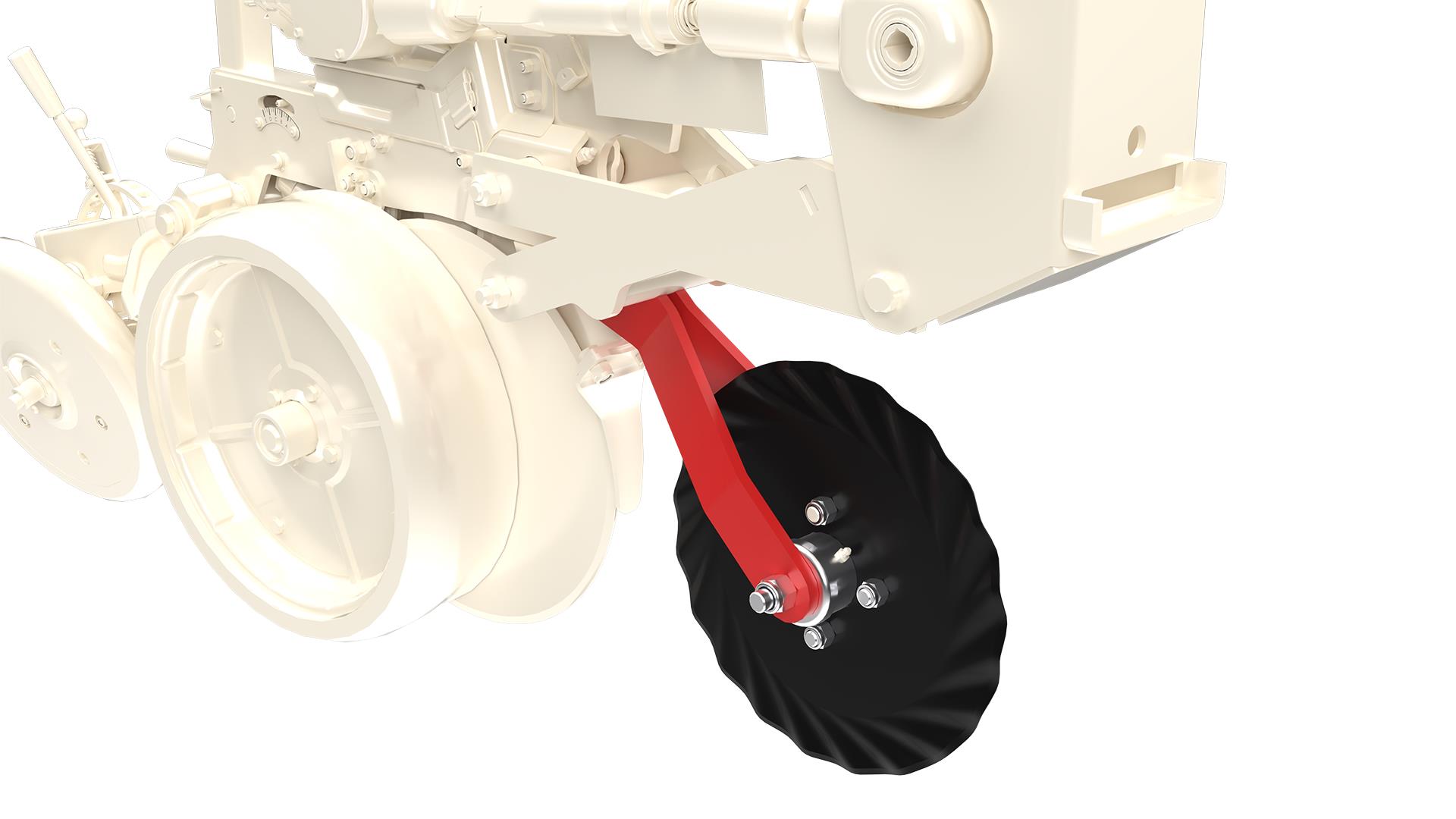

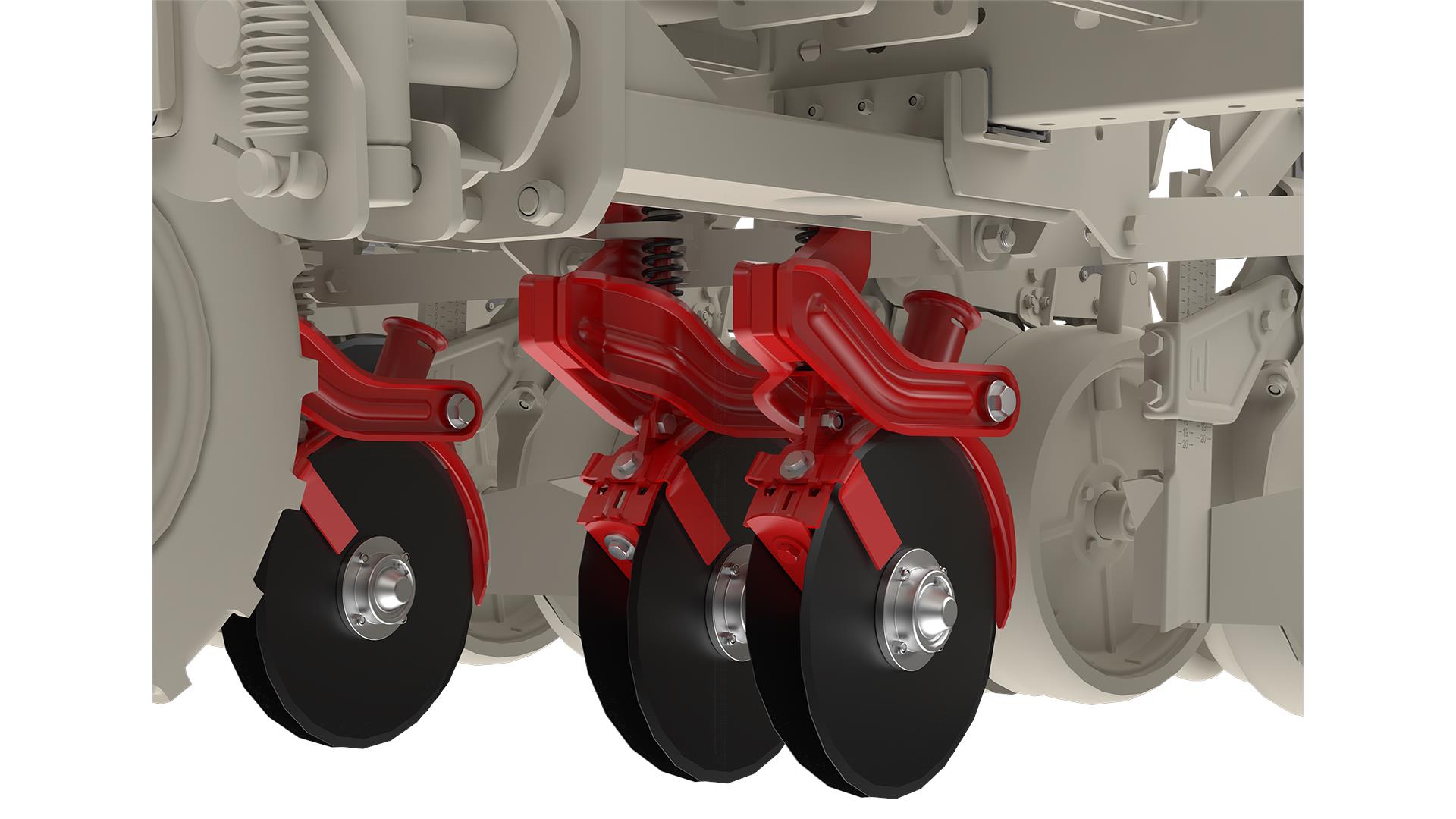

DISC TYPE FERTILIZER OPENER Disc type is optional on disc type row units and it’s especially suitable for low-till conditions.

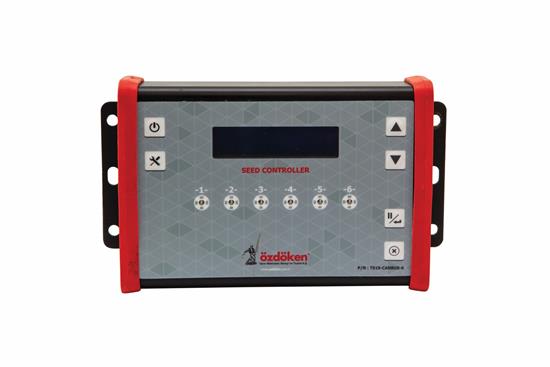

OPTIONAL TS SERIES SEED CONTROLLER -Seeding Control - Visually and Audibly Alarm -Seeding Speed -Area Counter

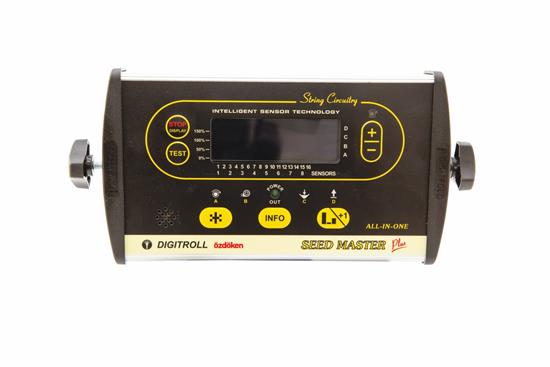

OPTIONAL DIGITROLL SEED MASTER PLUS CONTROLLER • Photosensored seed monitoring up to 8 rows • Total and partial hectare count • Automatic system diagnostic • Audible and visual blockage alarm • 6 selectable thresholds for missing seed alarms • Seed size selection for refined seed detection • Actual seed number per hectare • longtitudional seed space on each row unit

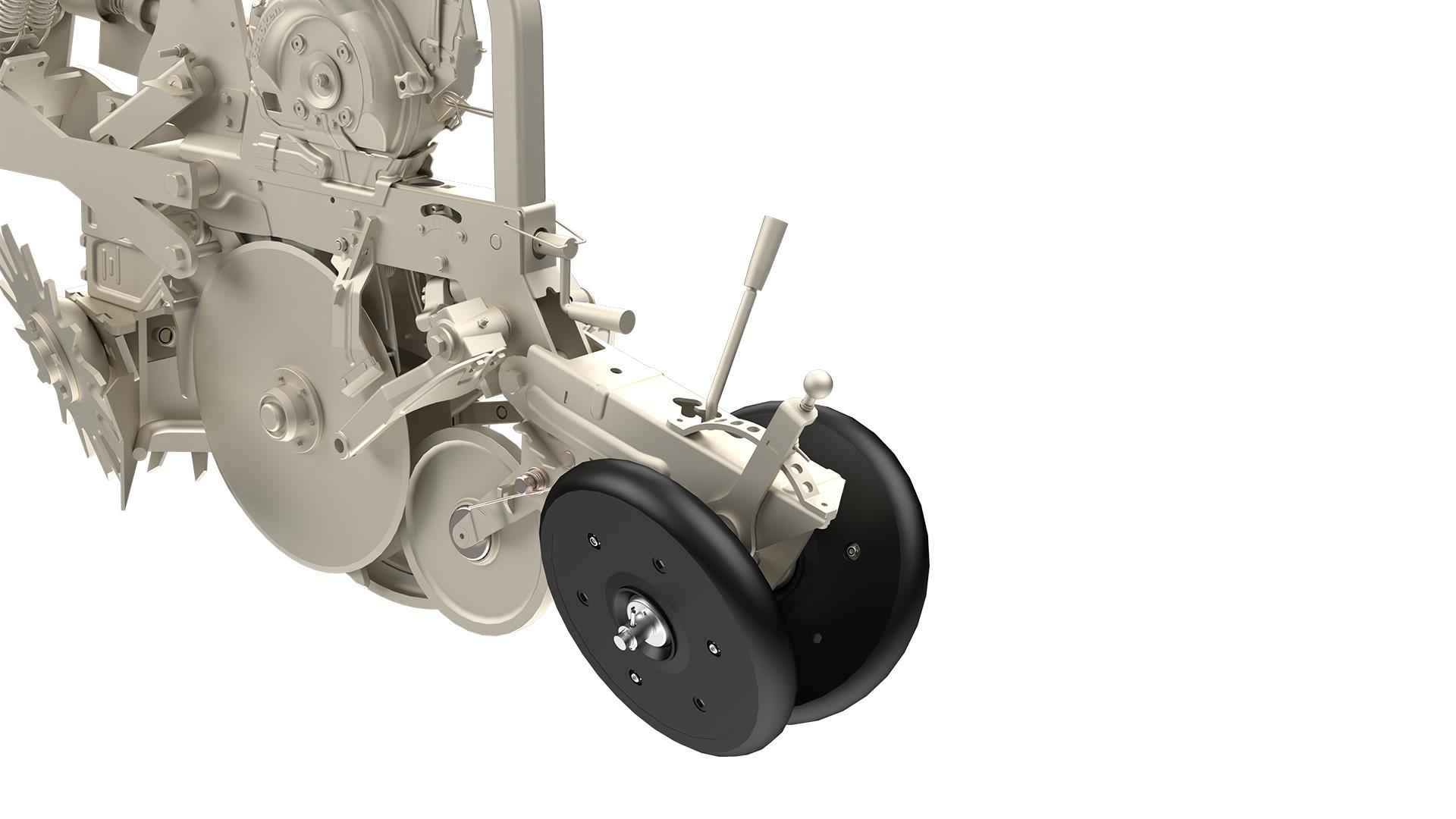

RUBBER SEED PRESS WHEEL The press wheel stops the seed at the seeds come to into good contact with the soil.
| Model | No Of Row Units | Row Space (cm) | Transport Width (cm) | Minimum Weight (kg) | Movement Tyre | Polythen Fertilizer Hopper (lt) | Metal or Inox Fertilizer Hopper (lt) | Jumbo Plastic Hopper (lt) | Jumbo Metal Fertilizer Hopper (lt) |
| VPTT-D4 | 4 | ADJUSTABLE 45-50-70 | 300 | 1080 | 23.5/10.50-12 | - | - | - | - |
| VPTT-DG4 | 4 | ADJUSTABLE 45-50-70 | 300 | 1180 | 180 lt x 1 | 200 lt x 2 | - | - | |
| VPTT-D4 | 4 | ADJUSTABLE 75-95 | 330 | 1080 | - | - | - | - | |
| VPTT-DG4 | 4 | ADJUSTABLE 75-95 | 330 | 1180 | 180 lt x 2 | 200 lt x 2 | - | - | |
| VPTT-D5 | 5 | ADJUSTABLE 45-50-55-60-65-70 | 320 | 1260 | - | - | - | - | |
| VPTT-DG5 | 5 | 320 | 1400 | 180 lt x 2 | 200 lt x 2 | - | - | ||
| VPTT-D6 | 6 | 400 | 1360 | - | - | - | - | ||
| VPTT-DG6 | 6 | 400 | 1520 | 230 lt x 2 | 250 lt x 2 | - | - |
* On all models, “G“ refers fertilizer hopper.
